File Logging Options

This configuration dialog is available both in the defaults section as well as with file logging actions.

File logging is used to write text files of received messages. One file per day is written. New entries are appended to the end of the file.

File locks are released when currently no data is written. Therefore, other applications can access the files while the service is running. However, please be sure that the other applications do not place a file-lock onto it. Popular WordPad does so. In this case, the service will not be able to log any further messages (an error event is written to the Windows Event Log in this case). We recommend copying the file when accessing it at runtime - or use notepad.exe, which does not place file-locks on the files it opens.

The filename is build as follows:

<FilePathName><FileBaseName>-year-month-day.<FileExtension>

Parameters in the brackets can be configured via dialog shown below:

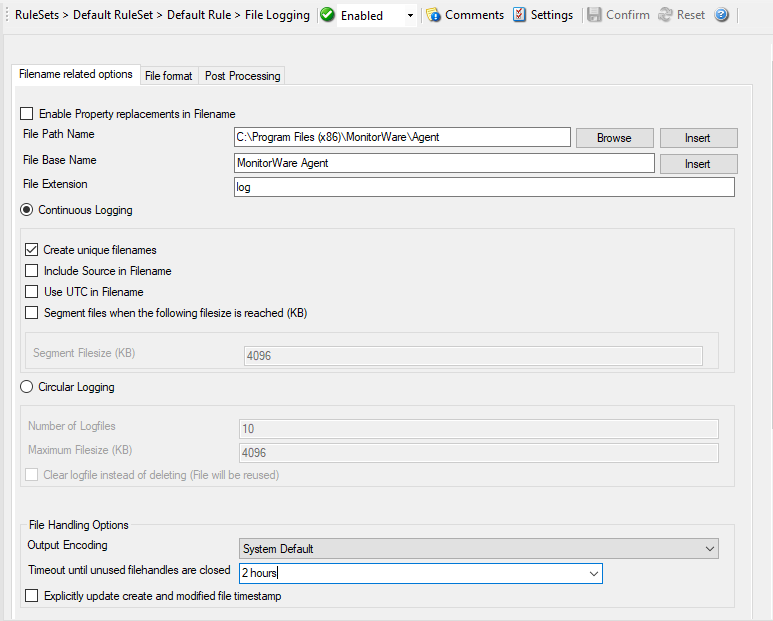

../_images/a-filelogging-filenamerelated.png

Action - File Logging Filename related

Enable Property replacements in Filename

File Configuration field:
nEnablePropertyFileName
Description:

By activating this option, you can use properties within the file or pathname like %source% and all the others. For example:

File Path Name can be F:\syslogs\%source% File Base Name can be IIS-%source%

If your source is 10.0.0.1, that writes the following file:

F:\syslogs\10.0.0.1\IIS-10.0.0.1.log

The path f:\syslogs\10.0.0.1 was generated because the source poperty was used inside the path.

Please Note that you can use ANY property inside the path and base name. Event properties are described in the property replacer section.

File Path Name

File Configuration field:
szFilePath
Description:

The base path (directory) of the file. Please see above for exact placement. Default is c:\temp. The Insert Menu entry allows you to create “Dynamic Directories”. For example:

File Path Name can be ** F:\syslogs\%source% **

Event properties are described in the property replacer section.

On network paths: The File Logging action can also work on network storages. There are two ways of storing log files in a network path.

  1. Direct the action to a full UNC path. In this case, make sure the system account with which the service is running is able to access the network path or the service will fail to access with a permission error. Sample path: \\Hostname\folder1\folder2\
  2. Map the UNC path to a local drive letter in Windows. In this case, the path will look like a regular local path, but actually points to a network location. This requires a workaround, which is to run a scheduled task at system startup under Local System and perform a net use specifying the user and password of the share. Else, the service will not be able to access the mapped UNC path, because the mapping usually happens for interactive sessions only.

File Base Name

File Configuration field:
szFileBaseName
Description:

The base name of the file. Please see above for exact placement. Default is “MonitorWare”. The Insert Menu entry allows you to recreate “Dynamic Base Filenames”. For example:

File Base Name can be IIS-%source%

File Extension

File Configuration fields:
szFileExtension
Description:
The extension to be used when writing the file. Please see above for exact placement. Default is .log.

Continuouse Logging

Description
When enabled log files won’t be overwritten, there is a single file with consistent file name. See below checkboxes to choose in which cases a new file should be created.

Create unique Filenames

File Configuration field:
nUniqueFileName
Description:

If checked, a unique file name is created for each day. This is done by adding the current date to the base name.

If left unchecked, the date is not added and as such, there is a single file with consistent file name. Some customers that have custom scripts to look at the file name use this.

Include Source in Filename

File Configuration field:
nIncludeSourceInFilename
Description:

This works together with the “Create unique Filenames” setting. If checked, the file name generation explained above is modified. The source of the Syslog message is automatically added to the file name.

This feature has been introduced because many customers would like to have separate log files for each device. While this can be achieved with multiple rules, it is much more straight forward with this single checkbox. If it is checked, the messages are automatically written to separate files and the file name includes the originating device information.

Use UTC in Filename

File Configuration field:
nUseUTCInFileName
Description:

This works together with the “Create unique Filenames” setting. If unique names are to be created then select the “Use UTC in Filename” option, in this case the file name is generated on the basis of universal co-ordinated time (UTC) or on local time. UTC was formerly referred to as “GMT” and is the basis of the time zone system. For example, New York, USA is 5 hours behind UTC. Therefore, if it is 12 noon in New York, the UTC time is 5pm.

When it comes to log file creation, it means that the date is computed on UTC. Taking the same example, if the “Use UTC in Filename” is checked, the log file name would roll over to the n thatext date at 7 pm New York time. If it were unchecked, the rollover would occur exactly at midnight New York time (5 am UTC).

Using UTC for file name creation can be helpful if log files are written among different time zones and later consolidated. Using UTC ensures a consistent time notation across all log files.

Please note that this setting does affect the file name creation only. A different setting controls the dates recorded inside the file.

Segment files when the following file size is reached (KB)

File Configuration field:
nSegmentFileEnable
Description:
Files are segmented if the defined file size: Segment Filesize (KB) is reached. A sequence number is appended to the file name: _1 to _n.

Circular Logging

File Configuration field:
nCircularLogging
Description:
If enabled, log files are created and overwritten in a cycle.

Number of Logfiles

File Configuration field:
nNumberOfLogfiles
Description:
Once the last logfile is reached, circular logging begins and overwrites the first log file again.

Maximum Filesize (KB)

File Configuration field:
nMaxFileSize
Description:
Max filesize of a log file, once this size is reached a new logfile is created.

Clear logfile instead of deleting (File will be reused)

File Configuration field:
nReUseFile
Description:
This option causes the File Action to truncate the log file instead of deleting and recreating it.

File Handling Options

Output Encoding

File Configuration field:
nOutputEncoding
Description:
This setting is most important for Asian languages. A good rule is to leave it at “System Default” unless you definitely know you need a separate encoding. “System Default” works perfectly in the far majority of cases, even on Asian (e.g. Japanese) Windows versions.

Timeout until unused filehandles are closed

File Configuration field:
nCleanFileHandlesTimeout
Description:
When dynamic filenames are used, filehandles are cached internally to avoid massive amount of File open/close operations. This timeout specifies after which time handles should be finally closed if not used anymore. Each write to a file will reset the timeout counter for the current filehandle.

Explicitly update create and modified file Timestamp

File Configuration field:
nEnableUpdateFileTime
Description:
If the checkbox is not selected the operating system updates the timestamps for creating and modifying files. In cases where the filesystem doesn’t do this reliable, the checkbox can be selected. Now the service itselfe updates the timestamps for creating and modifying files.

File Format

The format in which the log file is written can be selected here. The default is “Adiscon”, which offers most options. Other formats are available to increase log file compatibility to third party applications.

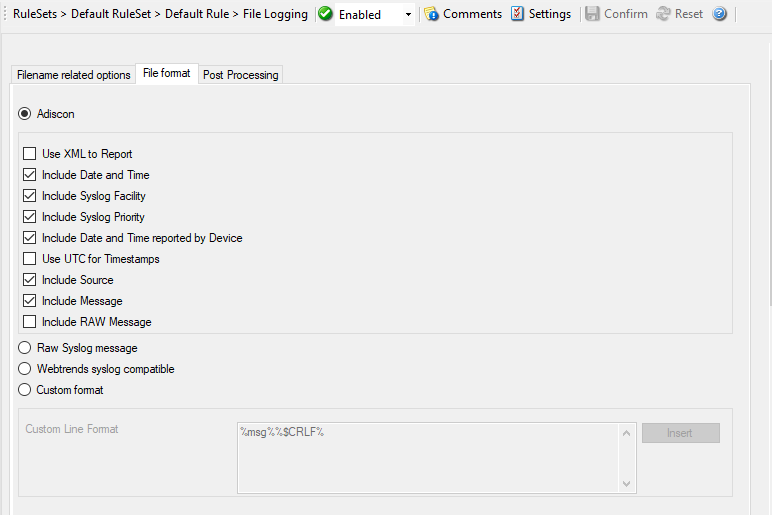

../_images/a-filelogging-fileformat.png

Action - File Logging File Format

Adiscon

Note

Any other format besides “Adiscon Default” are fixed formats. As such, if it is selected, all other formatting options do not apply and consequently are turned off.

The following options are possible:

Use XML to Report

File Configuration field:
nUseXMLtoReport
Description:
If checked, the message part includes a complete XML-formatted information record. It includes additional information like timestamps, Syslog facility and priority, and others in an easy to parse format. If XML output format is selected, you might consider turning all other information fields off, as they are already included in the XML stream. However, this is not a requirement.

Use UTC for Timestamps

File Configuration field:
nUseUTCForTimestamps
Description:
Please see the definition of UTC above at “Use UTC in Filename”. This setting is very similar. If checked, all time stamps are written in UTC. If unchecked, local time is used instead. Again, UTC is useful if logs written in multiple time zones are to be consolidated.

Include <Fieldname>

File Configuration field:
  • nFileDateTime
  • nFileFacility
  • nFilePriority
  • nFileDateTimeReported
  • nFileSource
  • nIncludeMessage
  • nIncludeRAWMessage
Description:

The various “include” settings controls are used to specify the fields which are to be written to the log file. All fields except the message part itself are optional. If a field is checked, it is written to the log file. If unchecked, it will not be written. All fields are comma-delimited.

Please note the difference between the “Date and Time” and “Date and Time reported by Device”. Both are timestamps. Either both are written in local time or UTC based on the “Use UTC for Timestamps” check box. However, “Date and Time” is the time when MonitorWare Agent received the message. Therefore, it is always a consistent value.

In contrast, the “Date and Time Reported by Device” is a timestamp taken from the actual message. As such, it is dependent on the reporting device clock, which might be off. In addition, in the case of Syslog messages, there is no time zone information within the device reported timestamp. As such, if devices from multiple time zones are reporting, the timestamp information is not consistent. This is due to Syslog design as of RFC 3164. The Syslog server can be configured to ignore the RFC in this case and provide a consistent time stamp. However, from the view of the log file writer, the “Date and Time Reported by Device” might not be as trustworthy as the “Date and Time” field. Nevertheless, it might also be more useful than the former one. This is the reason both timestamps are present and can individually be selected.

The “Include Message” and “Include RAW Message” fields allow customizing the message part that is being written. The raw message is the message as – totally unmodified, was received. This might be useful if a third party application is expecting raw Syslog entries. The message itself is just that part of the Syslog message that is being parsed as message. That is without e.g. host information or a tag value. Please note that we recommend selecting only one of these options, as otherwise two message fields are written. Similarly, if none is selected no message is written at all. Please note that we support these configurations, too – there might be a legitimate need for them.

Raw Syslog message

The “Raw Syslog message” format writes raw Syslog format to the log file. That is, each line contains the Syslog message as of RFC 3164. No specific field processing or information adding is done. Some third party applications require that format.

Webtrends syslog compatible

The “WebTrends Syslog compatible” mimics the format that WebTrends applications expect. Please note that we only mimic the log file format. It is still the job of the reporting device (most notable firewall) to generate the correct WebTrends WELF format. The “WebTrends” format is supported because many customers would like to use MonitorWare Agent 3.0 enhanced features while still having the ability to work with WebTrends.

Custom format

The “Custom format” allows you to customize formats to increase log file compatibility for third party applications. When you choose this option then Custom line format is enabled.

Custom Line Format

File Configuration field:
szLineFormat
Description:
Custome Line Format enables you to fully customize the output for the log file. The Insert Menu entry provides further options and they only work in custom line format. Default value is %msg%%$CRLF%.

Post Processing

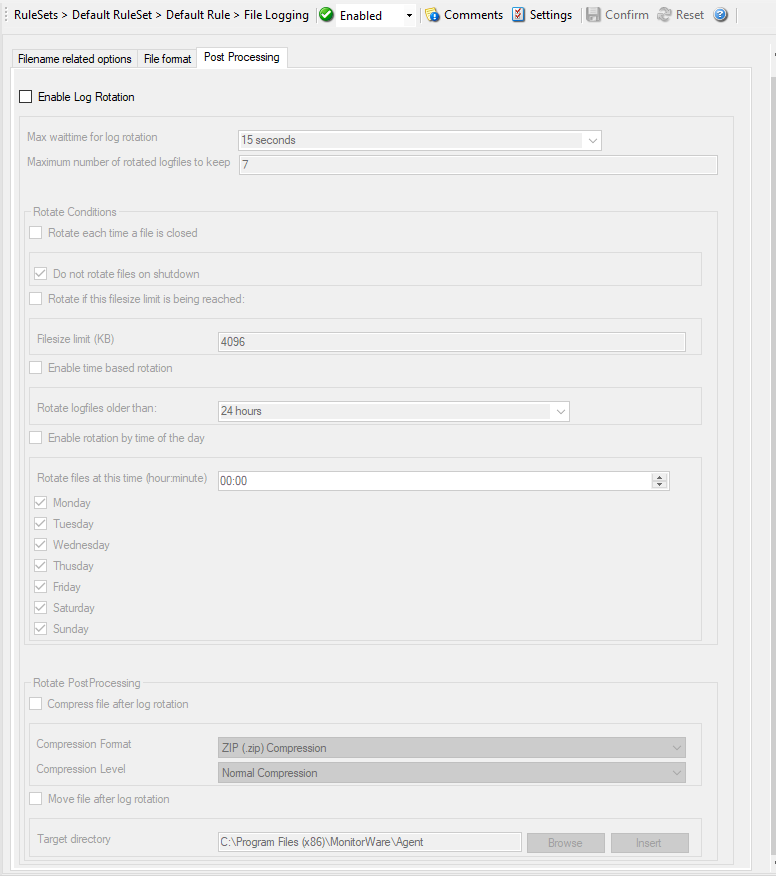

../_images/a-filelogging-postprocessing.png

Action - File Logging Post Processing

Enable Log Rotation

File Configuration field:
nCircularLogging
Description:
When enabled log files are created and over written in a cycle.

Maximum wait time for log rotation

File Configuration field:
nLogRotateMaxWait
Description:
Maximum Wait time when log rotation is processed within the Queue Engine.

Maximum number of rotated logfiles to keep

File Configuration field:
nNumberOfLogfiles
Description:
Once the last logfile is reached, circular logging begins and overwrites the first log file again.

Rotate Conditions

Rotate each time a file is closed

File Configuration field:
nLogRotateOnClose
Description:
When a file is closed (Timeout for example), log rotation will be done.

Do not rotate files on Shutdown

File Configuration field:
nLogDoNotRotateOnShutdown
Description:
Do not rotate logfiles if service is stopped even with “Rotate each time a file is closed” enabled.

Rotate if this filesize limit is being reached

File Configuration field:
nLogRotateOnSizeLimit
Description:
Enable log rotation if a configured file size is reached.

Filesize limit (KB)

File Configuration field:
nLogRotateSizeLimit
Description:
The actual file size in KB for “Rotate if this filesize limit is being reached”.

Enable time based rotation

File Configuration field:
nLogEnableRotateTimeout
Description:
Enable time based log rotation.

Rotate logfiles older than

File Configuration field:
nLogRotateTimeout
Description:
Sets the maximum file age before a logfile is being rotated when “Enable time based rotation” is enabled.

Enable rotation by time of the day

File Configuration field:
nLogEnableRotateTimeOfTheDay
Description:
Rotate this file at this time (hour:minute) and the checked day/days.

Rotate PostProcessing

Compress File After log rotation

File Configuration field:
nLogZipAfterRotate
Description:
Enable file compression after log rotation.

Compression Format

File Configuration field:
nLogZipAfterRotateFormat
Description:
It is possible to compress to ZIP or GZIP format.

Compression Level

File Configuration field:
nLogZipCompressionLevel
Description:

There are different levels that can be selected:

  • Best Speed
  • Low Compression
  • Normal Compression
  • Best Compression

Move file after log rotation

File Configuration field:
nLogMoveAfterRotate
Description:
Move logfile after rotation & compression.

Target directory

File Configuration field:
szLogMoveAfterRotatePath
Description:
Location where to move the logfile after rotation & compression.
