Time-Based Filters

Time-based filters are especially useful for notifications. For example, a user login is typically a normal operation during daytime, but if there are no night shifts, it might be worth generating an alert if a user logs in during night time. Another example would be a backup run that routinely finishes during the night. If we see backup events during the day, something might be wrong.

Similarly, there are a number of other good reasons why specific actions should only be applied during specific time frames. Fortunately, MonitorWare Agent allows defining complex time frames. In this tutorial, though, we focus on the simple ones.

Let us first define a sample time-based filter that applies a nightly time frame. In fact, there are many ways to do this. We have used the method below, because it is straightforward and requires the least configuration work.

To make matters easy, we use this filter condition just to write nightly event log data to a different log file. In reality, time-based filters are often combined with other conditions to trigger time based alerts. However, this would complicate things too much to understand the basics.

In the sample below, an additional rule called “Timing Control” has been added. It includes a time-based filter condition. Only if that condition evaluates to “true”, the corresponding action is executed. This action can be “Write to Database” or “Write to File”. Here we had selected “Write to File” action and renamed it as “Write at Night”.

Please note: we use the 24-hour clock system.


Time-Based Filters - 1

All events generated by services binding to our rule set “Defaults” are now also be passed along the “Timing Control” rule set. If these events come in night times between 19:00:01 and 5:59:50, the action “Write at Night” is executed.

Please note that the use of the “OR” operator is important because either one of the time frames specified does apply. This is due to the midnight break.

If an event comes in at 08:00:00 AM in the morning, the action is not called – it is outside of the specified time frame:

08:00:00 > 19:00:00 = false
08:00:00 < 06:00:00 = false

If the very same event comes in at 20:00:00 it evaluates to true and the action is executed.

20:00:00 > 19:00:00 = true
20:00:00 < 06:00:00 = false

As stated earlier, time frames are most often used in combination with other filters. Here is a more complex example:

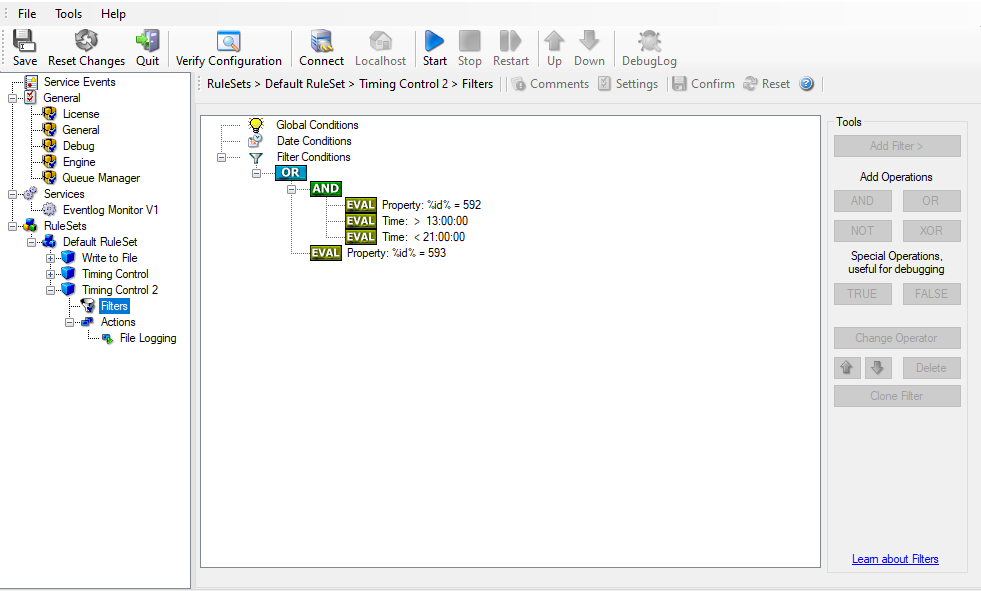

Time-Based Filters - 2

In this example, we call the configured actions if events with ID 592 occurs between 13:00:01 and 20:59:59 (roughly 21:00:00). We also execute the configured actions if event ID 593 occurs. Please note that in the case of 593 events, the time filter does not apply due to the used Boolean operations.

In this sample, you also notice that we use an “AND” condition to build the time frame. The reason is that there is no implicit midnight boundary for our time frame as was in the first sample. As such, we need to employ “AND” to make sure the events are WITHIN the specified range.

Now let us look at some sample data:

We receive a 592 event at 07:00:00 sharp:

Event ID = 592          = true
07:00:00 > 13:00:00     = false
07:00:00 < 21:00:00     = false
"AND" Branch            = false
Event ID = 593          = false

In all, the filter condition is false.

Now, the same event comes in at 14:00:00:

Program start ID = 592  = true
Event ID = 592          = true
14:00:00 > 13:00:00     = true
14:00:00 < 21:00:00     = true
"AND" Branch            = true
Event ID = 593          = false

This time, the time frame is correct, yielding to an overall true condition from the “AND” branch. That in turn yields to the filter condition as whole to evaluate to true.

In this example still is another Event ID. All events with event ID 593 are grasped. This happens independently from the timing control when grasping the Events 592.

One last sample. At this time, event 593 comes in at 07:00:00:

Program start ID = 593  = true
Event ID = 592          = false
07:00:00 > 13:00:00     = false
07:00:00 < 21:00:00     = false
"AND" Branch            = false
Event ID = 593          = true

This time the filter condition evaluates to true, too. The reason is that the (not matched) time frame is irrelevant as the other condition of the top-level “OR” branch evaluates to true (Event ID = 593).
