HTTP REST Output#

The HTTP REST Output action forwards matched events or messages to an HTTP or HTTPS endpoint. It is available on WinSyslog, EventReporter, and MonitorWare Agent starting with 26.07 (action type 1032, RestOutput).

Use this action for webhooks, REST APIs, and OpenSearch bulk indexing. It is distinct from the older HTTP Request action, which performs a simpler HTTP call.

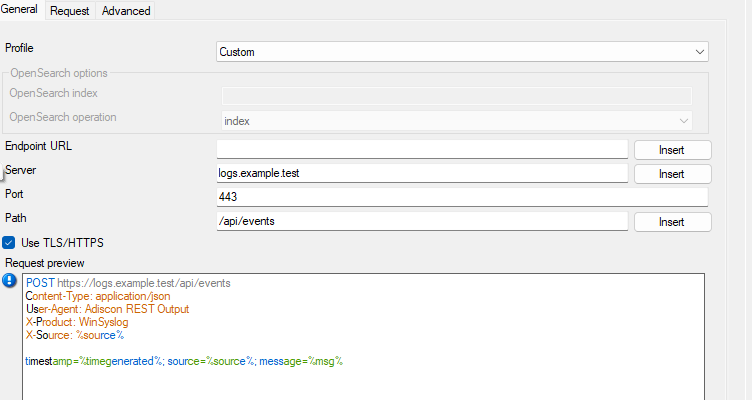

Action - HTTP REST Output - General

General tab#

Profile#

File Configuration field:

szProfile

Description:

Selects the request profile:

Custom — full control over endpoint, method, headers, and body template.
OpenSearch bulk — preconfigured layout for OpenSearch bulk API uploads.

Endpoint#

File Configuration field:: szEndpoint
Description:: Optional full endpoint URL. When set, it can override separate server, path, and port fields depending on profile behavior. A preview shows the resolved URL in the client.

Server#

File Configuration field:: szServer
Description:: Host name or IP address of the REST endpoint.

Path#

File Configuration field:: szPath
Description:: URL path (default /).

Port#

File Configuration field:: nPort
Description:: TCP port (0 uses the default for HTTP or HTTPS).

Use TLS#

File Configuration field:: bUseTLS
Description:: Use HTTPS instead of HTTP.

Ignore TLS certificate errors#

File Configuration field:: bIgnoreTlsCertificateErrors
Description:: Accept server certificates even when validation fails. Use only in controlled test environments.

Request tab#

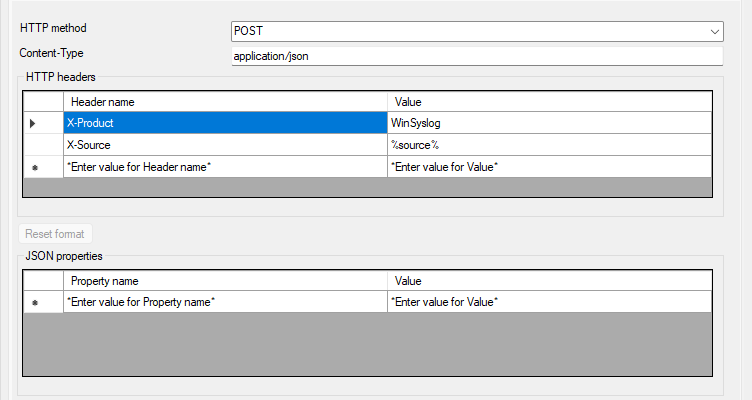

Action - HTTP REST Output - Request

Method#

File Configuration field:: szMethod
Description:: HTTP method: POST, PUT, PATCH, GET, or DELETE.

Content-Type#

File Configuration field:: szContentType
Description:: Value for the Content-Type header (for example application/json).

HTTP headers#

File Configuration field:: szHttpHeaders
Description:: Additional headers as configured in the client header list.

Request template#

File Configuration field:: szRequestTemplate
Description:: Body template for the HTTP request. Property replacers can embed event fields. The client supports mapping JSON properties to values for structured payloads.

OpenSearch bulk profile#

When OpenSearch bulk is selected:

File Configuration field:: szOpenSearchIndex
Description:: Target index name.
File Configuration field:: szOpenSearchOperation
Description:: Bulk operation type: index or create.

Advanced tab#

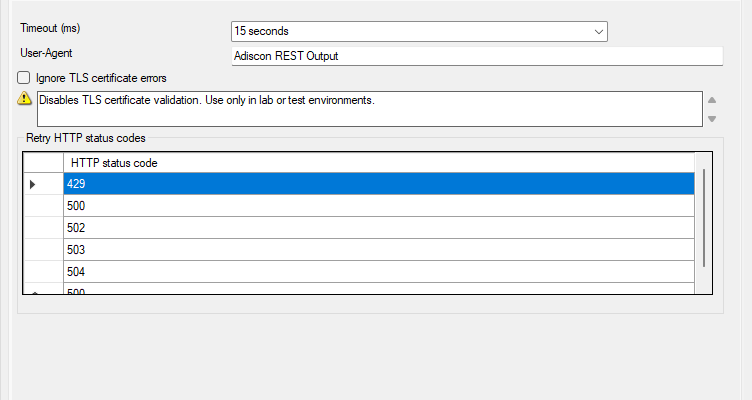

Action - HTTP REST Output - Advanced

Timeout#

File Configuration field:: nTimeoutMs
Description:: Maximum time in milliseconds to wait for the HTTP response (default 15000).

User-Agent#

File Configuration field:: szUserAgent
Description:: User-Agent header sent with the request (default Adiscon REST Output).

Retry HTTP status codes#

File Configuration field:: szRetryHttpStatusCodes
Description:: Comma-separated list of HTTP status codes that trigger a retry (default 429,500,502,503,504). Individual codes can also be configured in the retry list in the client.
